THIN WALL FOOD CONTAINER MOULD
Thin-Wall Food Container Mold Solutions
Mold supply and machine–mold matching for high-speed thin-wall food-container production. Review filling, cavities, cooling, release, automation and IML as one system.
Product geometryFilling & coolingStable releaseHigh-speed machine fit
01 / IDENTIFY THE CONTAINER
What thin-wall food container do you need to produce?
Capacity alone does not define the mold. Start with the actual container, its lid or sealing interface and the way the finished parts must be handled.

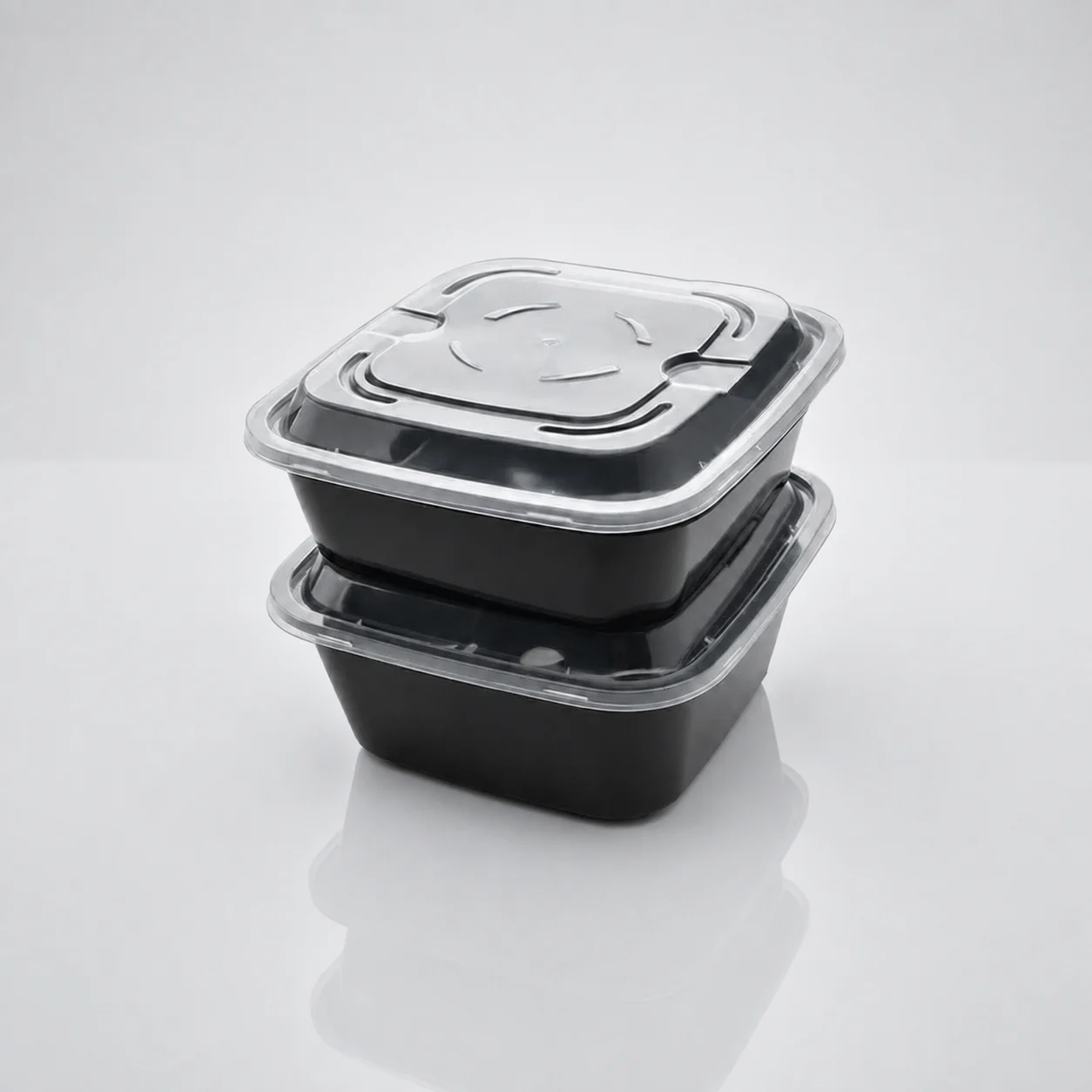

Takeaway & meal boxes
Review the product profile, rim, base and lid relationship.

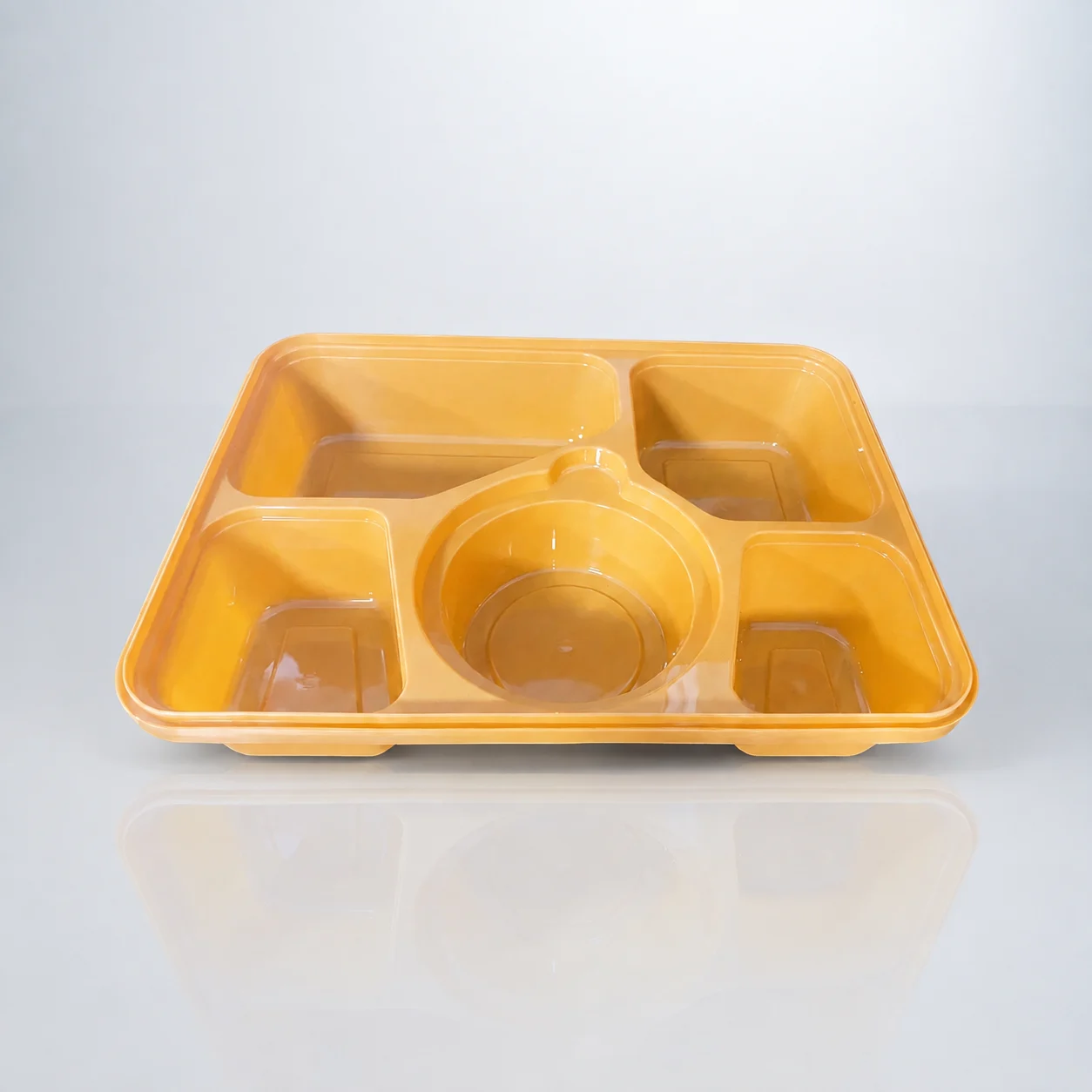

Rectangular containers
Define corners, wall transitions, stacking and release surfaces.
Round containers & lids
Check diameter, rim geometry, nesting and matching-lid requirements.
Producing yogurt cups, beverage cups or drink cups? Go to Plastic Cup Injection Mold →
02 / WHY THIN-WALL TOOLING IS DIFFERENT
The mold must support the complete high-speed cycle
A thin-wall food container mould cannot be evaluated independently from the intended machine, product and output target. There is no universal wall-thickness threshold for every container.
- 01Wall section + flow length + cavities
- 02More demanding filling requirement
- 03Filling balance becomes critical
- 04Cooling + release must remain stable
- 05Machine + automation must match
03 / PRODUCT GEOMETRY
Container geometry drives mold decisions
Send the product information you have. Unknown details can be reviewed, but container volume alone is not enough.
FORM
Length, width or diameter · height · base geometry · ribs
PART
Material · weight · wall section · flow length
INTERFACES
Rim · lid fit · IML area · stacking or nesting requirement
04 / CAVITY CONFIGURATION
Cavity count is the result of a system review
Work backward from the production target. More cavities affect the mold, machine, cooling and handling requirements together.
- 01Target output
- 02Cavity concept
- 03Mold size + injection volume
- 04Projected area + filling balance
- 05Machine requirement
- 06Cooling + automation / IML
05 / RUNNER, GATE & FILLING BALANCE
Review how every cavity is filled
Material flow, the proposed runner and gate concept, venting and cavity layout influence multi-cavity consistency. Specific runner systems and gate geometry are confirmed from the actual product and mold design.
INPUTResin + product geometry
→MOLD REVIEWRunner · gate · venting · layout
→VALIDATIONBalanced filling across cavities
Hot-runner selection, gate count and gate dimensions are confirmed against the actual product and mold design.
06 / CORE & CAVITY COOLING
High-speed filling cannot solve a cooling bottleneck
Heat removal affects dimensional stability, part release and repeatable production. Review core and cavity thermal balance with the real container, mold concept and plant cooling supply.
- Core and cavity heat-removal relationship
- Cooling balance across the cavity layout
- Release condition and deformation risk
- Cooling connections and available plant supply
07 / EJECTION & PART RELEASE
Release the container without losing its shape
Large surface areas, thin walls, rims and corners can make release and handling sensitive. The selected mechanism must be based on the verified mold design.
Rim & edge protection
Check the sealing rim, corners and surfaces against marking or damage.
Orientation & take-out
Coordinate stable release, robot access and the required downstream orientation.
08 / HIGH-SPEED MACHINE + MOLD
Confirm process capability—not only physical fit
The selected or existing machine must accommodate the mold and provide the filling, clamping and motion capability required by the proposed thin-wall container.
01Container drawing
02Weight + wall + flow length
03Cavity concept
04Mold size + filling requirement
09 / ROBOT & AUTOMATION COMPATIBILITY
Reserve mold-side access for reliable take-out
Review mold opening, end-of-arm tooling access, product orientation and the placement direction before finalizing the interfaces.
- 01Mold open confirmed
- 02Robot entry + part release
- 03Container supported and removed
- 04Robot clears mold area
- 05Interlock permits mold close
Robot model, reach, payload and stacking method are confirmed from the selected production cell.
10 / MOLD-SIDE IML REVIEW
Configure IML only when the product requires it
IML affects the label area, cavity geometry, label positioning and retention, robot access, part release and cycle sequence. Not every container mold is assumed to be IML-compatible.
LABEL ↔ CAVITY ↔ ROBOT
Review the interfaces together
- Label geometry and intended decoration area
- Placement and retention in the cavity
- Robot clearance and part release
- Mold timing and machine signals
11 / CONTAINER + LID
Treat the matching lid as part of the brief
Provide the actual lid or drawing early when rim fit or sealing must match an existing design. Include the finished container’s stacking or nesting requirement.
EXISTING LID / NEW LID REQUIREMENT↕CONTAINER RIM + SAMPLE FIT REVIEW
- Must the container match an existing lid?
- What fit or sealing result is required?
- Is a matching lid mold part of the request?
- How should containers and lids stack or nest?
12 / EXISTING MACHINE COMPATIBILITY
Check installation and thin-wall process capability separately
For a mold-only project, send the machine specification sheet and nameplate with the container information.
01 / PHYSICAL COMPATIBILITY
Can the mold be installed and operated?
- Brand, model and clamping force
- Tie-bar spacing and platen dimensions
- Mold thickness range and opening stroke
- Nozzle, ejector and robot-access interfaces
02 / PROCESS CAPABILITY
Can the machine run the intended thin-wall mold?
- Total shot and injection configuration
- Projected-area and clamping review
- Filling capability for the proposed flow path
- Cooling, release and automation sequence
13 / CHOOSE THE PROJECT SCOPE
Mold only—or the complete food-container project?
Configure for your existing machine
- 01Container brief
- 02Mold configuration
- 03Machine compatibility
- 04Supply + trial / sample review
Coordinate the full production cell
Review the high-speed machine, thin-wall food container mold, robot or IML, cooling and material handling together.
Explore Food Container Injection Molding Solutions14 / MOLD CONFIGURATION REFERENCES

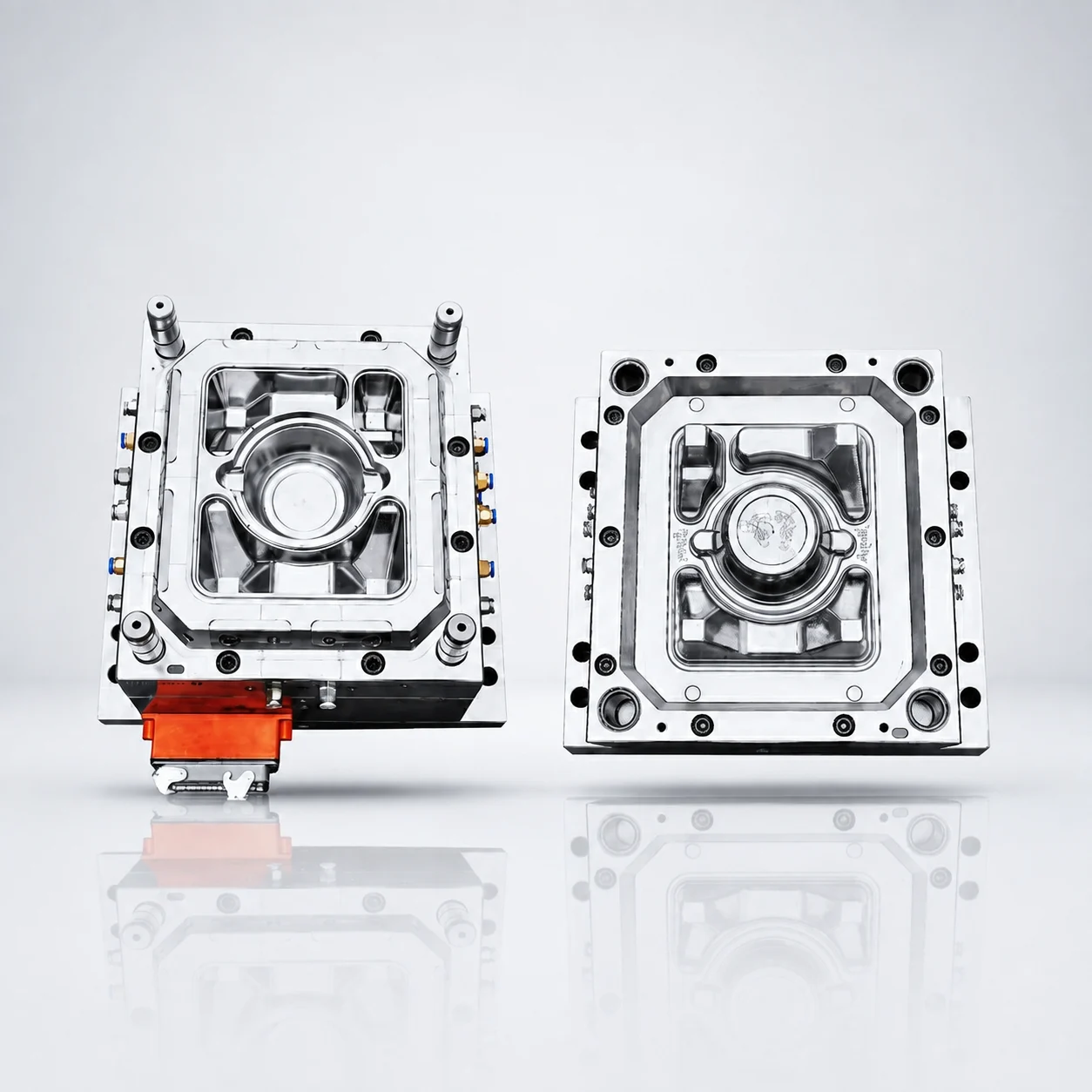

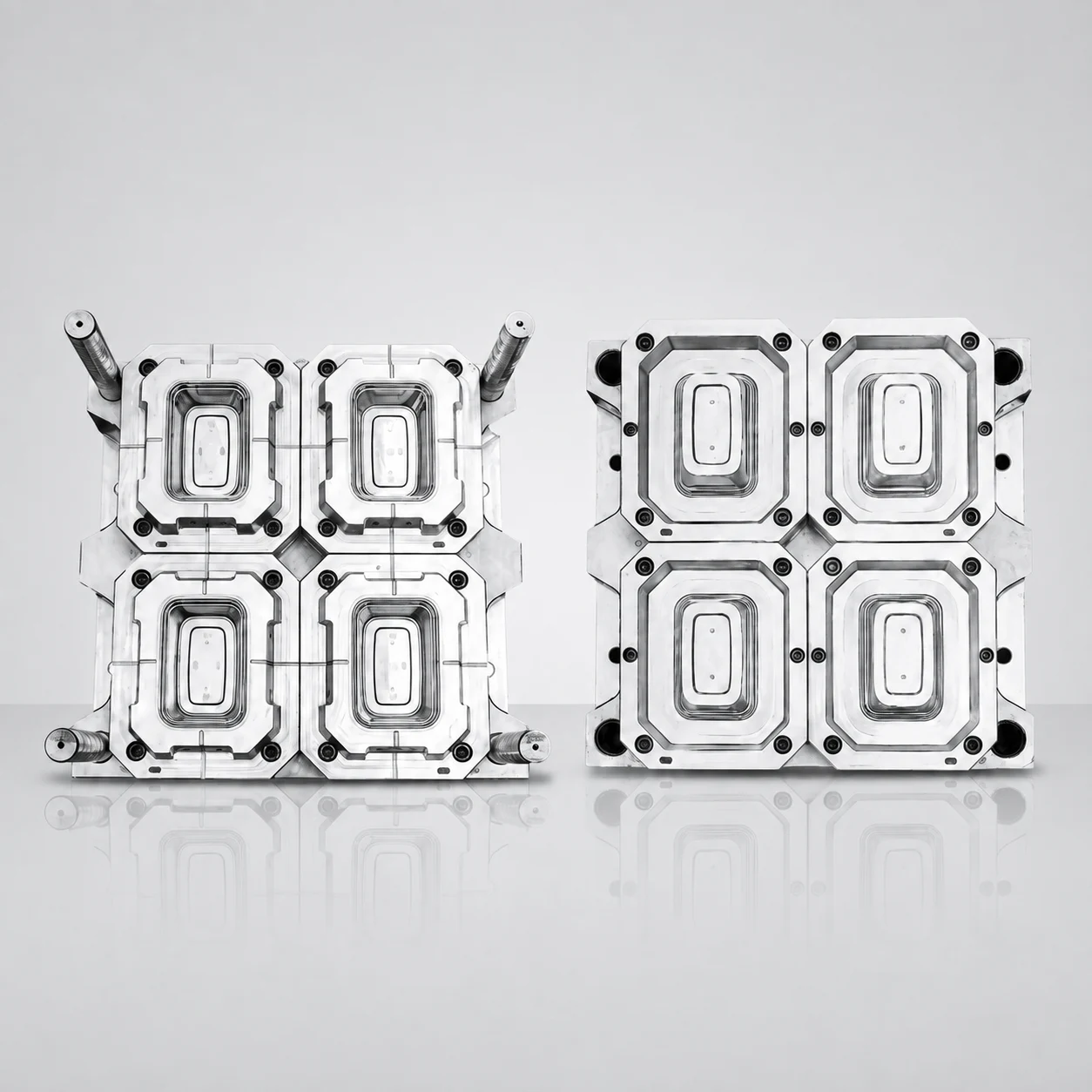

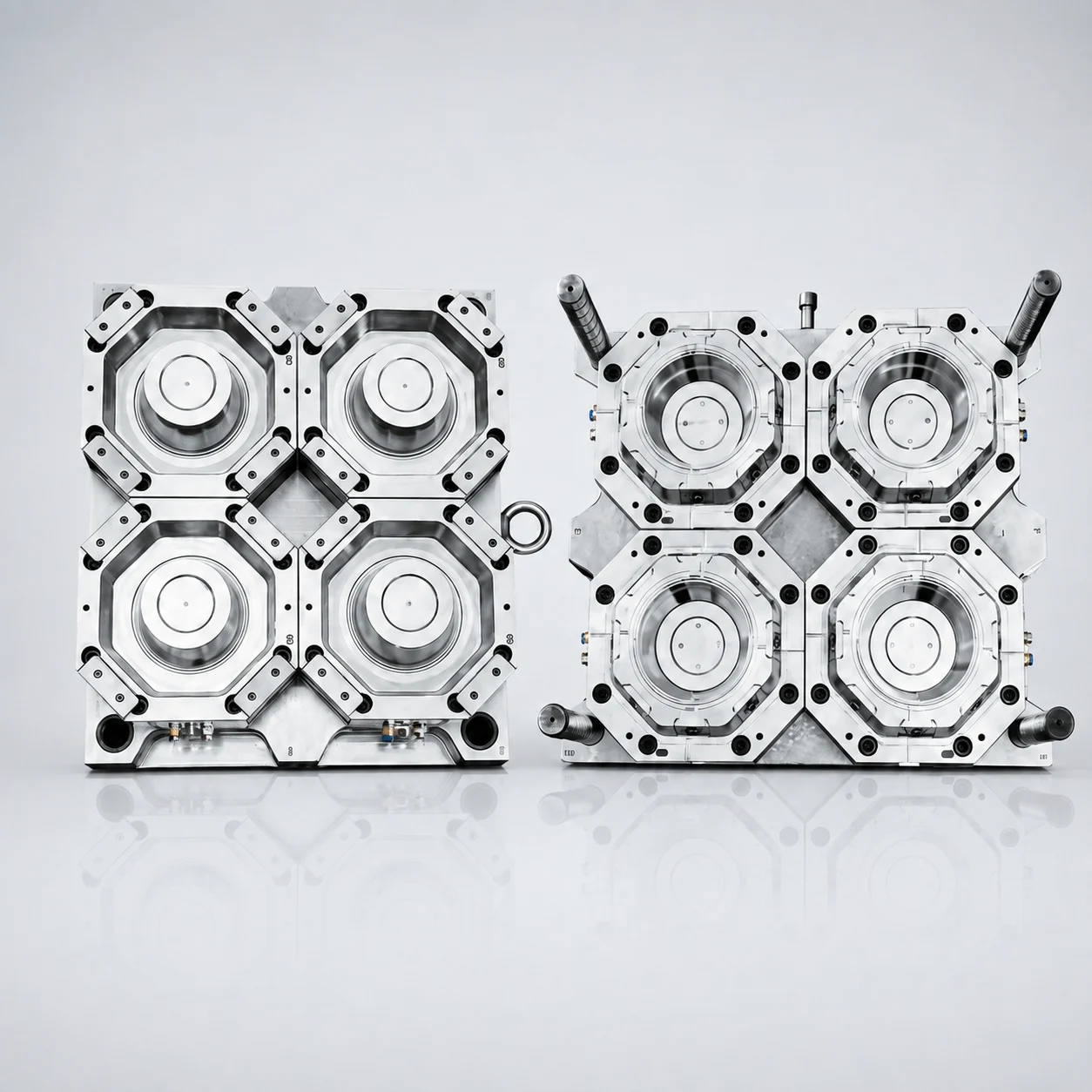

Review real mold structures against the intended container
Reference images help identify the mold category and questions to review. Final runner, gate, cooling, release and interface details are configured around the submitted product and machine.
Cycle time, output, cavity count, mold life, tolerance and acceptance criteria are confirmed against matching project evidence.
15 / BUYER QUESTIONS
Thin-wall food container mold FAQ
What information is required to quote a thin-wall food container mold?
Send a container photo, sample or drawing, with material, dimensions, weight and wall section if known. Add the lid, IML, target-output and intended-machine requirements. Cavity count can be reviewed during configuration.
What makes a thin-wall food container mold different from a standard container mold?
Thin sections, long flow paths, cavity layout and the production target can make filling balance, heat removal, release and handling more demanding. The mold must therefore be reviewed with the intended machine and complete cycle.
How does cavity count affect machine selection?
Cavity count changes total shot, projected area, mold dimensions, filling balance, cooling demand and take-out requirements. Compare a cavity concept with the complete machine and automation requirement rather than treating it as an isolated option.
Why is cooling important for thin-wall container molds?
Core and cavity heat removal affects dimensional consistency, release and cycle stability. A machine that fills quickly cannot compensate for an unbalanced or insufficient mold-cooling arrangement.
Can HWAMDA match the mold to my existing injection molding machine?
Yes. Send the machine brand, model, clamping and mold-space data, injection capacity, nozzle information, opening stroke and relevant filling capability. Both physical fit and process capability require engineering review.
Can I order only the mold?
Yes. HWAMDA supports mold-only projects with the container requirements, intended machine, mold configuration, supply scope and sample-acceptance requirements reviewed together.
Can the mold be configured for IML?
IML can be reviewed when the container, label, cavity access, label retention, release and robot sequence support it. IML capability is not assumed for every container mold.
Can HWAMDA supply the machine and mold together?
HWAMDA can coordinate the high-speed machine, mold supply and matching, automation and auxiliary requirements as a configured food-container production project. The proposal defines the confirmed scope and interfaces.
Can the container mold be matched to an existing lid?
Provide the actual lid or its drawing and identify the required fit or sealing result. Rim geometry, material behavior and molded-sample fit should be reviewed before the requirement is confirmed.
What should I provide if I only have a product sample or photo?
Send clear side, top and base photos with a scale reference where possible. Add measured dimensions, weight, material if known, the matching lid and the changes you want. A physical sample can then be arranged for review if needed.
16 / YOUR MOLD REQUEST
Get a Thin-Wall Food Container Mold Configuration & Quote
Start with the container. Upload a product or lid drawing, sample photo, existing mold drawing or machine nameplate if available.
- Container geometry, material and lid requirement
- Cavity, filling, cooling and release review
- Existing or planned high-speed machine fit
- Robot and IML requirements when applicable
You do not need to choose a cavity count before contacting us.
